Educational Certificate OCR API

The following document highlights the details of the Educational Certificate OCR API.

API Description

Objective

The Educational Certificate OCR API processes marksheet images and returns candidate information, examination details, and subject-wise marks for 10th and 12th standard marksheets.

Educational Certificate OCR API

The API supports marksheets from various educational boards across India, including documents in regional languages. It is template agnostic and can process both 10th standard (SSC) and 12th standard (HSC) marksheets.

Input	Output
An image of a 10th or 12th standard marksheet	The extracted candidate information, examination details, and subject-wise marks. The complete list of output fields is available in the Success Response Details section.

API URL

https://ind-engine.thomas.hyperverge.co/v1/readEducationCertificate

API Endpoint

readEducationCertificate

Overview

The Educational Certificate OCR API is RESTful and uses standard HTTP verbs and status codes. The responses are in JSON format and you should upload all images and files as form-data through a POST request.

Authentication

You need a unique pair of application ID (appid) and application key (appkey) from HyperVerge to verify your identity for accessing the Educational Certificate OCR API.

Method - POST

Headers

Parameter	Mandatory or Optional	Description	Allowed Values
content-type	Mandatory	This parameter defines the media type for the request payload	multipart/form-data
appid	Mandatory	The application identifier shared by HyperVerge. You can find the details in the dashboard's credentials tab.	This should be a unique value.
appkey	Mandatory	The application key shared by HyperVerge. You can find the details in the dashboard's credentials tab.	This should be a unique value.
transactionId	Optional	A unique identifier for tracking a user journey	This should be both unique and easily associated with the user's journey in your application(s)

Inputs

The following table outlines the parameters required in the Educational Certificate OCR API's request body:

Parameter	Mandatory / Optional	Type	Description	Input Format	Default Value
image	Mandatory	file	The educational certificate or marksheet image file to be processed	Image file (JPEG, JPG, or PNG) with a maximum size of 6MB, or a PDF file	Not Applicable

Caution

• When multiple images are included in a single API request, only one image is processed. Ensure that each API call contains a single image.
• For PDF files with multiple pages, only the first page is processed for OCR extraction.

Request

The following code snippet demonstrates a standard curl request for the Educational Certificate OCR API:

curl --location --request POST 'https://ind-engine.thomas.hyperverge.co/v1/readEducationCertificate' \
--header 'appid: <Enter_the_App_ID>' \
--header 'appkey: <Enter_the_App_Key>' \
--header 'transactionId: <Enter_the_Transaction_ID>' \
--form 'image=@"<Enter_the_File_Path>"'

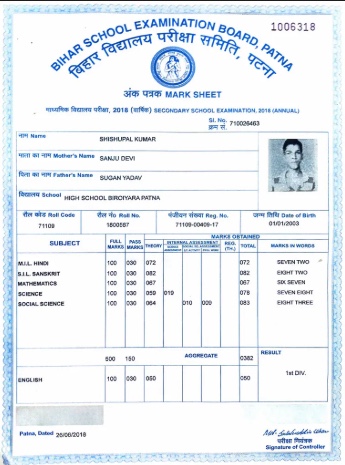

Document Sample

The following is a sample educational certificate processed by the API:

Success Response

The following JSON code snippet demonstrates a success response from the Educational Certificate OCR API:

{
    "status": "success",
    "statusCode": 200,
    "result": {
        "details": [
            {
                "fieldsExtracted": {
                    "examinationName": {
                        "value": "<Examination_Name>"
                    },
                    "boardOrUniversityName": {
                        "value": "<Board_Or_University_Name>"
                    },
                    "candidateName": {
                        "value": "<Candidate_Name>"
                    },
                    "studentRollNumber": {
                        "value": "<Student_Roll_Number>"
                    },
                    "dateOfBirth": {
                        "value": "<Date_Of_Birth>"
                    },
                    "guardianName": {
                        "value": "<Guardian_Name>"
                    },
                    "yearOfPassing": {
                        "value": "<Year_Of_Passing>"
                    },
                    "marksObtained": {
                        "value": [
                            {
                                "subjectName": "<Subject_Name>",
                                "marksInWords": "<Marks_In_Words>",
                                "marksInFigures": "<Marks_In_Figures>"
                            },
                            {
                                "subjectName": "<Subject_Name>",
                                "marksInWords": "<Marks_In_Words>",
                                "marksInFigures": "<Marks_In_Figures>"
                            }
                        ]
                    },
                    "totalMarksObtained": {
                        "value": "<Total_Marks_Obtained>"
                    },
                    "result": {
                        "value": "<Result_Division>"
                    }
                },
                "type": "Mark Sheet"
            }
        ]
    },
    "metadata": {
        "requestId": "<Request_ID>"
    }
}

Success Response Details

The following table outlines the details of the success response from the Educational Certificate OCR API:

Parameter	Type	Description
status	string	The status of the request
statusCode	integer	The HTTP status code returned by the Educational Certificate OCR API
result.details	array	The list of extracted document information objects, one per detected document
type	string	The type of the detected document (e.g., Mark Sheet)
examinationName	string	The name of the examination (e.g., Secondary School Examination, Higher Secondary Final Examination)
boardOrUniversityName	string	The name of the educational board or university that conducted the examination
candidateName	string	The full name of the student or candidate
studentRollNumber	string	The roll number assigned to the student for the examination
dateOfBirth	string	The date of birth of the candidate
guardianName	string	The name of the parent or guardian of the candidate
yearOfPassing	string	The year in which the candidate passed the examination
marksObtained	array	The subject-wise breakdown of marks, containing one object per subject
marksObtained[].subjectName	string	The name of the subject
marksObtained[].marksInWords	string	The marks obtained in the subject expressed in words (may be empty)
marksObtained[].marksInFigures	string	The marks obtained in the subject expressed as numeric figures
totalMarksObtained	string	The total marks obtained by the candidate across all subjects
result	string	The final result or division awarded to the candidate (e.g., 1ST DIV., Pass with First Division)
metadata.requestId	string	The unique request identifier provided in metadata

Error Responses

The following are the error responses from the Educational Certificate OCR API:

Invalid/Missing Image

{
    "message": "Input Validation Error: Invalid input passed for field 'image'",
    "statusCode": 400,
    "status": "failure"
}

File Too Large

{
    "message": "File too large",
    "statusCode": 400,
    "status": "failure"
}

Missing/Invalid Credentials

{
    "message": "Missing/Invalid credentials",
    "statusCode": 401,
    "status": "failure"
}

Document Not Detected

{
    "status": "failure",
    "statusCode": 422,
    "result": {
        "error": "Document Not Detected"
    },
    "metadata": {
        "requestId": "<Request_ID>"
    }
}

Internal Server Error

{
    "status": "failure",
    "statusCode": 500,
    "message": "Internal Server Error"
}

Error Response Details

A failure or error response from the module contains a failure status, with a relevant status code and error message. The following table lists all error responses:

Status Code	Error Message	Error Description	Error Resolution
400	Input Validation Error: Invalid input passed for field 'image'	The image parameter is missing or contains an invalid value	Ensure the image field is present and contains a valid image file in the request body
400	File too large	The uploaded image file exceeds the maximum allowed size of 6MB	Compress or resize the image to ensure it is under 6MB before uploading
401	Missing/Invalid credentials	The request is missing the mandatory appid and appkey combination or has invalid values	Verify and provide valid credentials from the dashboard's credentials tab
422	Document Not Detected	No valid educational document was detected in the provided image	Ensure the uploaded image contains a clear and valid 10th or 12th standard marksheet
500	Internal Server Error	An unexpected error occurred on the server	Check the request headers or contact the HyperVerge team for resolution
