Death Certificate OCR API

The following document highlights the details of the Death Certificate OCR API.

API Description

Objective

The Death Certificate OCR API extracts key information from images of death certificates including,

The name of the deceased,
The place of death,
The date of death,
The registration date,
The registration number.

Input	Output
The image of the Death Certificate document	The key information extracted from the Death Certificate database using the OCR

Next Step

Retrieve the complete death certificate information of the deceased through the Death Certificate DB Validation API.

API URL

https://ind-engine.thomas.hyperverge.co/v1/readDeathCertificate

API Endpoint

readDeathCertificate

Overview

The Death Certificate OCR API is RESTful and uses standard HTTP verbs and status codes. The responses are in JSON format, and you should upload all images and files as form-data through a POST request.

Method - `POST`

Authentication

You need a unique pair of application ID ( appId ) and application key ( appKey ) from HyperVerge to verify your identity for accessing the Death Certificate OCR API.

Headers

Header	Mandatory / Optional	Description	Input Format
content-type	Mandatory	This parameter defines the media type for the request payload	multipart/form-data
appId	Mandatory	The application identifier shared by HyperVerge. You can find the details in the dashboard's credentials tab	This should be a unique value
appKey	Mandatory	The application key shared by HyperVerge. You can find the details in the dashboard's credentials tab	This should be a unique value
transactionId	Mandatory	Unique ID for the customer journey	Any defined unique value mapped to a transaction in your business ecosystem

Inputs

Input Image Constraints

The text in the image should be legible for the product to extract information from an image successfully.
A high image size leads to high uploading and processing time. The size of image should be reduced as much as possible while ensuring that prior condition is met.
General guideline: Set the width of the ID card image to at least 800 pixels and the JPEG compression quality factor above 80%.
The aspect ratio of the input image should be the same as the aspect ratio of the original document. Please verify the aspect ratio when resizing the image.
The HyperVerge SDK provides the camera functionality for capturing images of ID cards while considering all the aforementioned requirements.

The following table provides the details of the parameters required for the Death Certificate OCR API's request body:

Parameter	Mandatory / Optional	Type	Description	Input Format	Default Value
`image`	Mandatory	file	The image file on which the Death Certificate OCR API will perform the OCR extraction. Note The Death Certificate OCR API supports JPEG, PNG and TIFF images.	Image file (JPEG, PNG, or TIFF)	Not Applicable
`project`	Optional	string	The project identifier for the Death Certificate OCR API. This value must be hard-coded as `"646b7cf6bd661c00239e7309"` in your implementation	646b7cf6bd661c00239e7309	Not Applicable

Request

The following code snippet demonstrates a standard curl request for the Death Certificate OCR API:

curl --location --request POST 'https://ind-engine.thomas.hyperverge.co/v1/readDeathCertificate' \
--header 'Content-Type: multipart/form-data' \
--header 'appId: <Enter_the_HyperVerge_appId>' \
--header 'appKey: <Enter_the_HyperVerge_appKey>' \
--header 'transactionId: <Enter_the_HyperVerge_transactionID>' \
--form 'image=@"<Enter_image_path_with_extension>"' \
--form 'project="646b7cf6bd661c00239e7309"'

Document Sample

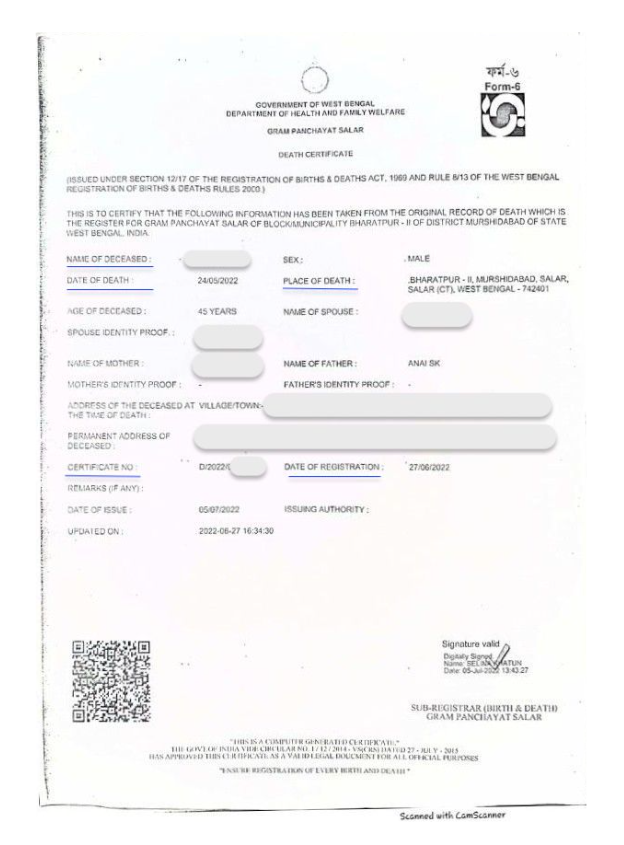

The following is a sample of a death certificate document:

death_certificate_sample

note

Some of the personally identifiable information (PII) in the sample have been intentionally obscured.

Success Response

The following code snippet demonstrates a success response from the Death Certificate OCR API:

{
  "status": "success",
  "statusCode": "200",
  "result": [
    {
      "details": {
        "name": {
          "value": "<Name_of_deceased>",
          "conf": 1,
          "to-be-reviewed": "no"
        },
        "place": {
          "value": "<Address>",
          "conf": 0.49,
          "to-be-reviewed": "yes"
        },
        "date": {
          "value": "24/05/2022",
          "conf": 1,
          "to-be-reviewed": "no"
        },
        "date_registration": {
          "value": "27/06/2022",
          "conf": 1,
          "to-be-reviewed": "no"
        },
        "registration_number": {
          "value": "<Registration_Number>",
          "conf": 0.93,
          "to-be-reviewed": "no"
        }
      },
      "type": "dv_v0.2"
    }
  ]
}

Success Response Details

The following table outlines the details of the success response from the Death Certificate OCR API:

Parameter	Type	Description
`status`	string	The status of the request
`statusCode`	string	The HTTP status code for the response
`result`	array	The JSON array containing the extracted death certificate details
`name`	object	The name of the deceased individual
`place`	object	The address of the fatal incident
`date`	object	The date of the death
`date_registration`	object	The date of certificate registration
`registration_number`	object	The registration number (or certificate number) of the death certificate

Failure Response

The following code snippet demonstrates a failure response from the Death Certificate OCR API:

{
    "status": "failure",
    "statusCode": 422,
    "error": "No Document detected",
    "requestId": "xxxxxxxxxxxxxxxx"
}

Error Responses

The following are some error responses from the Death Certificate OCR API:

Missing Input Image
Multiple Input Images
Image Size Issue
No Document Detected
Internal Server Error

{
    "status": "failure",
    "statusCode": "400",
    "error": "API call requires one input image",
    "requestId": "xxxxxxxxxxxxxxxx"
}

{
    "status": "failure",
    "statusCode": "400",
    "error": "API call handles only one input image",
    "requestId": "xxxxxxxxxxxxxxxx"
}

{
    "status": "failure",
    "statusCode": "400",
    "error": "image size cannot be greater than 12MB",
    "requestId": "xxxxxxxxxxxxxxxx"
}

{
    "status": "failure",
    "statusCode": 422,
    "error": "No Document detected",
    "requestId": "xxxxxxxxxxxxxxxx"
}

{
    "statusCode": 500,
    "status": "failure",
    "error": "Internal Server Error"
}

Error Response Details

A failure or error response contains a failure status with a relevant status code and error message.
The following table lists all error responses:

Status Code	Error Message	Error Description	Error Resolution
400	API call requires one input image	The request missed the `image` input	Ensure the request includes the `image` parameter with a valid image file
400	API call handles only one input image	The request had more than one `image` file input. The Death Certificate OCR API expects only one file in the request	Ensure the request includes only one `image` file
400	image size cannot be greater than 12MB	The image size is larger than the allowed limit	Reduce the image size to be less than 12MB while maintaining image quality
422	No Document detected	The Death Certificate OCR API failed to detect a document in the image. Ensure that the image captures the document following the guidelines mentioned under the Input Image Constraints section	Ensure the image clearly captures the death certificate document following the input image constraints
500	Internal Server Error	There was an error with HyperVerge's server. Please contact the HyperVerge team.	Check the request headers or contact the HyperVerge team for resolution
